Magneti Marelli MM-HC1224LL

€2,249.59

€2,249.59 VAT excl.

, delivery time 1-14 days (depending on location / carrier)

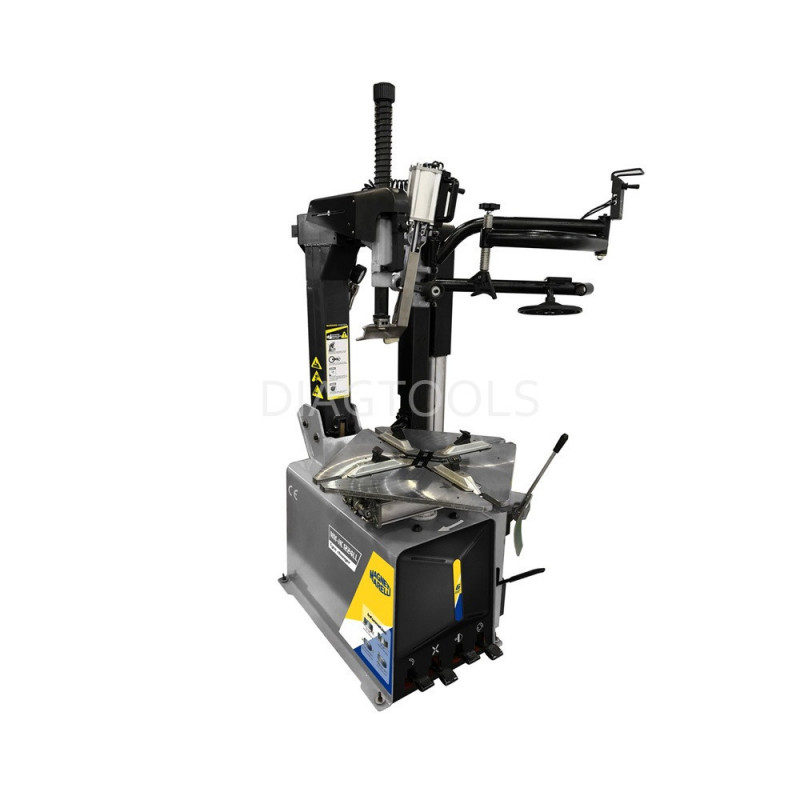

MM-HC1224LL is a high quality tire changer with good price-performance ratio. Magneti Marelli (Italy).

Add to wishlist (0)

MM-HC1224LL is a professional high quality tire changer with good price-performance ratio. It have the very strong structure, flexible operating mechanism, high-quality electrical and pneumatic parts which achieve the high reliability. Assist arm system makes the tire changing process very simple and safe even for Run-Flat and low profile tires.

Features:

- Patented housing design
- Unique crossbar design provides secure support when changing tires
- Four-position adjustable tire breaker
- Assist arm system
- Integrated drive and high efficiency gear
- Automatic handling of rims from 11” to 27”
- External spacing up to 25”
- Mechanical pin lock
- Standard operating lever with pneumatic cylinder
- Pneumatically turning working arm
- Set of alloy wheel covers included
- Support arm for low-profile tires
- Two table speeds (model MM-HC1224LL2V and MM-HC1224LLTI2V)
- Inflator in table jaws (model MM-HC1224LLTI2V)

Product code HC1224LL

In stock 2 items

- Dimensions of outer locking rim: 10-25”
- Dimensions of inner locking rim: 12-27”
- Max. wheel diameter: 1143 mm (45”)
- Max. wheel width: 406 mm (16”)
- Operating pressure: 810 bar
- Power supply: 110V (1ph)/ 220V (1ph)/ 380V (3ph)
- Optional motor power: 0.75/0.55/1.1 kW
- Max. torque (rotary table): 1078 Nm
- Overall dimensions: 1130x900x1030mm
- Noise level: <75dB

- Tire changer
- Assistant arm
- Tire lever
- Covers (jaws, impactor, head, rim)
- Tire pressure
- Hose
- Inflation gun with electronic pressure gauge
- Brush
- User's manual
- Package (with pallet)

Product introduction, English (PDF)

User´s manual, English (PDF)
